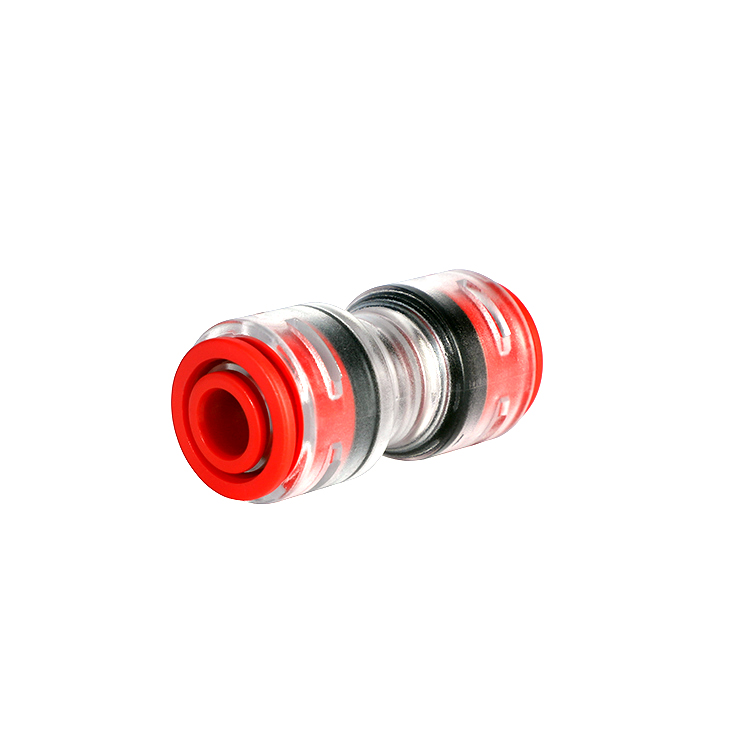

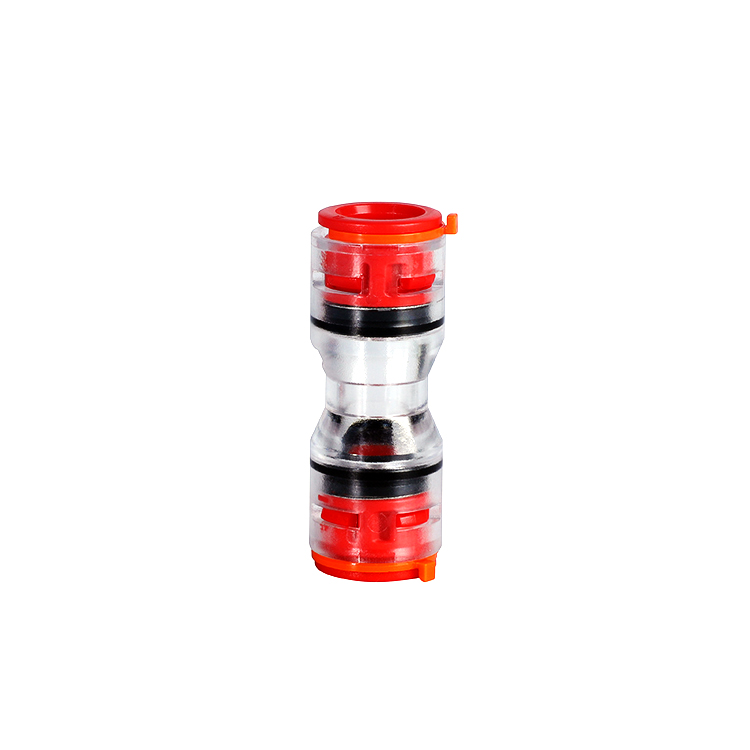

Microduct Connector for Blowing Fiber Cable
China blqd® is a Microduct Connector for Blowing Fiber Cable supplier. The connector can be used to connect two microducts of the same outer diameter, and it is high quality push to fit fittings designed to offer great performance for blown and drawn/pulled optical fibre installations.

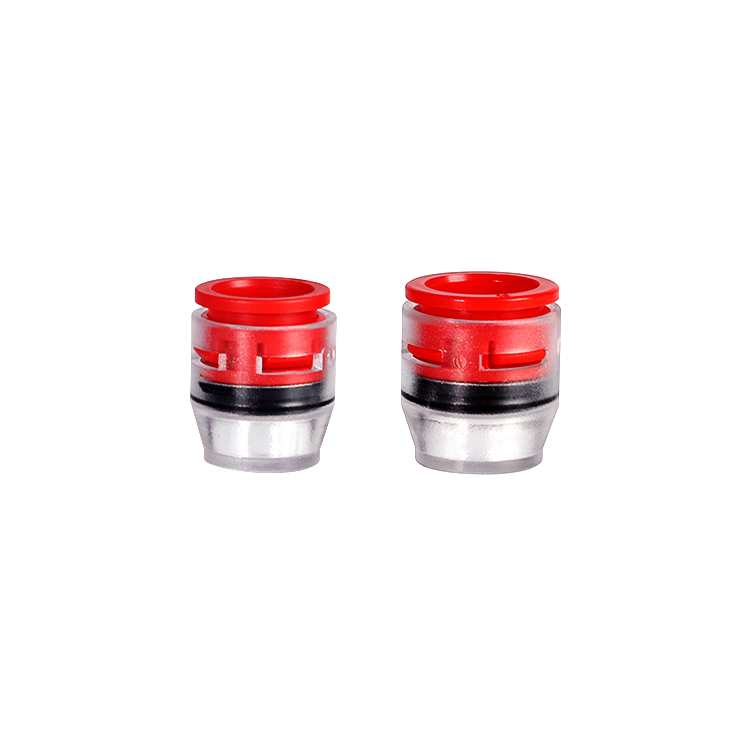

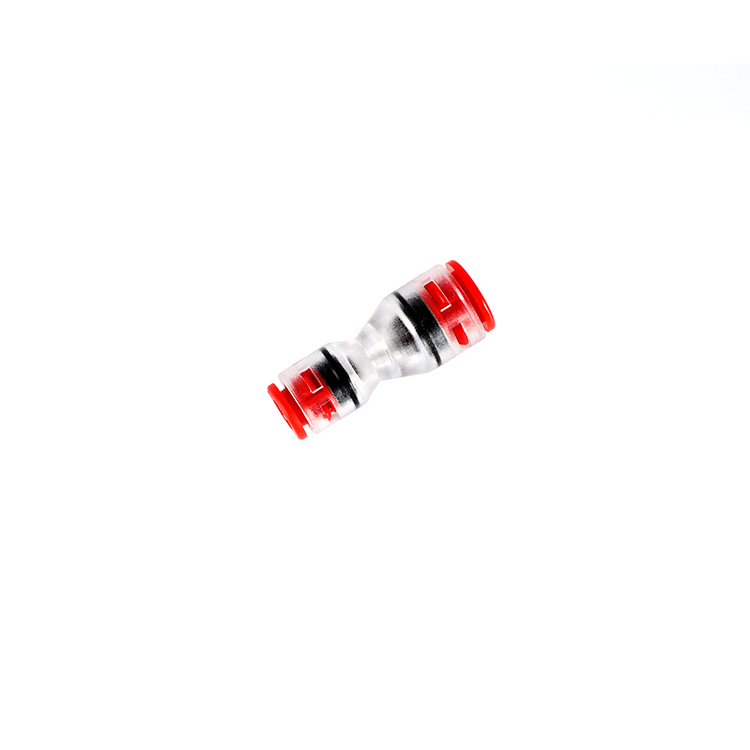

Model:Straight connector ,Reducer connector,Microduct connector,Endstop connector
Send Inquiry
Product Description
Microduct Connector for Blowing Fiber Cable Material
• Body Polycarbonate
• Washer Polyacetal
• Collar Polyacetal
• Seal NBR
• Lock Claws SUS
• Sleeve Polyacetal
Microduct Connector for Blowing Fiber Cable Description
● Connect two microducts which are the same outer diameter.
● Easy installation,without any special tools.
● Transparent plastic body,easy to observe the situation.
● High Temperature resistance -20℃--+50℃
● High Pressure resistance >25bar.
● IP Rate: IP68
● FR Resistance style also available V0
● Stanadard:EN50411
● Reremtion OD/ID(mm)
|
Duct OD/ID |
5/3.5 |
7/3.5 |
8/5 |
10/6 |
12/9 |
14/10 |
16/12 |
18/14 |
20/16
|
22/18
|
|
Pull out forces |
150N |
300N |
350N |
400N |
500N |
700N |
900N |
1000N |
1200N |
1200N |
|
Specification |
Duct OD/ID(mm) |
THR Bore(mm) |
|
Straight Connector STR3/2.1 |
3/2.1 |
2.1 |
|
Straight Connector STR4/2.5 |
4/2.5 |
2.5 |
|
Straight Connector STR5/2.1 |
5/2.1 |
2.1 |
|
Straight Connector STR5/3.5 |
5/3.5 |
3.5 |
|
Straight Connector STR6/4 |
6/4 |
4 |
|
Straight Connector STR7/3.5 |
7/3.5 |
3.5 |
|
Straight Connector STR7/4 |
7/4 |
4 |
|
Straight Connector STR7/5.5 |
7/5.5 |
5.5 |
|
Straight Connector STR8/3.5 |
8/3.5 |
3.5 |
|
Straight Connector STR8/5 |
8/5 |
5 |
|
Straight Connector STR8/6 |
8/6 |
6 |
|
Straight Connector STR8.5/6 |
8.5/6 |
6 |
|
Straight Connector STR10/6 |
10/6 |
6 |
|
Straight Connector STR10/8 |
10/8 |
8 |
|
Straight Connector STR12/8 |
12/8 |
8 |
|
Straight Connector STR12/10 |
12/10 |
10 |
|
StraightConnectorSTR12.7/10 |
12.7/10 |
10 |
|
Straight Connector STR14/10 |
14/10 |
10 |
|
Straight Connector STR14/12 |
14/12 |
12 |
|
Straight Connector STR16/12 |
16/12 |
12 |
|
Straight Connector STR16/13 |
16/13 |
13 |
|
Straight Connector STR18/12 |
18/12 |
12 |
|
Straight Connector STR18/14 |
18/14 |
14 |
|
Straight Connector STR20/16 |
20/16 |
16 |
|
Straight Connector STR22/18 |
22/18 |
18 |
